Really Close

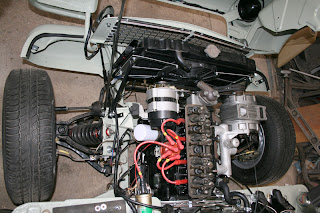

I knew getting the radiator to fit was going to be problematic.

I decided from the start I wanted to remove the engine bay valences that support the radiator on the Herald setup and go with supporting cradle and mounting brackets as per the Spitfire.

I also wanted to fit an electric fan in place of the mechanical one preferably sited behind the radiator.

The longer crankshaft pulley, Shorrock pulley and belts shouldn't make that much difference to positioning the radiator in it's original position.

However the fan mounting brackets have pushed the fan forward ever so slightly, and somehow various modifications have compounded to make the radiator top tube fail to align with the thermostat housing. There was no way we were going to get the original top hose on there.

As a rather drastic solution, we've cut the end off the radiator top tube in an attempt to alleviate the angles involved. This isn't my preferred solution, but hopefully I can address this problem better before the 10CR next month. Right now we want to get the car MOT and ready for Stafford at the end of the week. In place of the original top hose is a cut down bottom hose that fits pretty well.

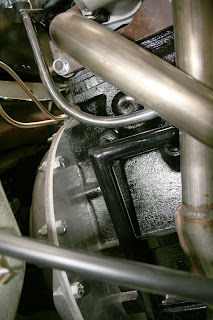

Paul has done a really good job modifing the engine breather pipe to clear the branch manifold.
