Fuel Supply

I've opted for an electrical fuel pump to keep up with the demands of the Shorrock Supercharger. The fuel pump will be installed in the boot, with a combined fuel filter/regulator in the engine bay - exact position to be decided.

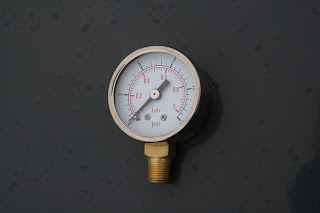

This is a "Facet Red Top" fuel pump, and a "Filter King" fuel regulator. To setup the regulator, there's a pressure gauge that can be connected onto a T-piece.

The fuel pump will required a cut-out switch in the event of an accident.





Possible fuel pump wiring diagram -
